Power diodes are fundamental components in electronic circuits, playing a crucial role in converting alternating current (AC) to direct current (DC). They are widely used in power supplies, motor drives, and renewable energy systems. Understanding the different types of power diodes and their specific applications is essential for optimizing performance and efficiency. One brand that stands out in the realm of high-performance power diodes is Duken, particularly with their innovative HiPer FRED 2TM diodes.

Types of Power Diodes
Silicon Diodes
Silicon diodes are the most common type of power diodes. They are inexpensive and have a forward voltage drop of about 0.7 volts. These diodes are suitable for general-purpose applications and are widely used in rectifiers and voltage regulators. However, they are not as efficient as more advanced diodes in high-frequency and high-power applications.
Schottky Diodes
Schottky diodes, also known as hot-carrier diodes, have a lower forward voltage drop (typically around 0.2 to 0.3 volts) compared to silicon diodes. This makes them ideal for high-frequency applications where minimizing power loss is crucial. Schottky diodes are commonly used in switch-mode power supplies and RF circuits.
Zener Diodes
Zener diodes are used for voltage regulation in circuits. They operate in reverse breakdown mode, allowing a constant voltage to be maintained across the diode regardless of changes in current. Zener diodes are widely used in voltage reference circuits and overvoltage protection.
Fast Recovery Diodes (FRDs)
Fast recovery diodes are designed to switch quickly between conducting and non-conducting states, making them suitable for high-frequency applications. They have a shorter reverse recovery time compared to standard silicon diodes, which reduces switching losses and improves efficiency. FRDs are commonly used in switching power supplies and inverters.
PIN Diodes
PIN diodes are characterized by a lightly doped intrinsic (I) region sandwiched between two heavily doped P and N regions. They are used primarily in RF and microwave applications due to their low capacitance and ability to handle high power levels.

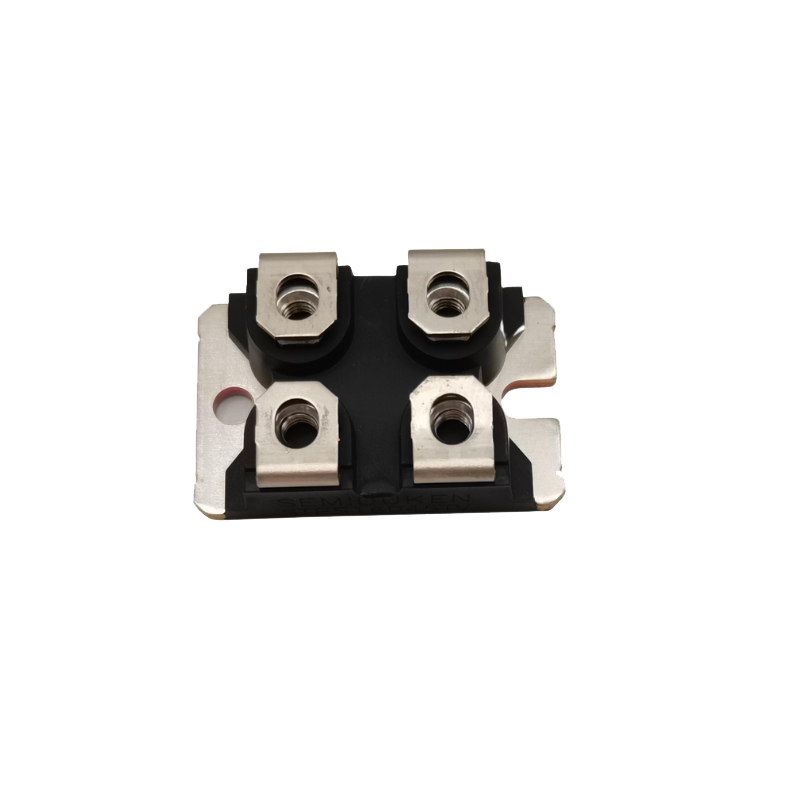

Duken's HiPer FRED 2TM Diodes
Duken, a leading manufacturer of power diodes, has developed the HiPer FRED 2TM diodes, which represent a significant advancement in fast recovery diode technology. These diodes are designed to offer superior performance in high-frequency and high-power applications, making them ideal for use in modern power electronics.

Key Features of HiPer FRED 2TM Diodes
Ultra-Fast Reverse Recovery Time
The HiPer FRED 2TM diodes have an extremely short reverse recovery time, typically less than 35 nanoseconds. This feature minimizes switching losses and improves the overall efficiency of the circuit. The ultra-fast recovery time is achieved through advanced semiconductor materials and optimized doping profiles.
Low Forward Voltage Drop
Duken's HiPer FRED 2TM diodes have a low forward voltage drop, typically around 1.1 volts at high currents. This reduces conduction losses and enhances the thermal performance of the diode, making it suitable for high-power applications.
High Current Density
The HiPer FRED 2TM diodes are capable of handling high current densities, making them ideal for use in high-power switching circuits. The robust construction and advanced thermal management ensure that the diodes can operate reliably under demanding conditions.
Enhanced Thermal Performance
Duken has incorporated advanced thermal management techniques into the design of the HiPer FRED 2TM diodes. This includes optimized chip layout and high-thermal-conductivity materials, which help to dissipate heat efficiently and maintain stable operating temperatures.
Reliability and Longevity
The HiPer FRED 2TM diodes are built to last, with a long operational life and high reliability. Duken's stringent quality control processes ensure that each diode meets the highest standards of performance and durability. These diodes are ideal for applications where reliability is critical, such as in industrial power supplies and renewable energy systems.
Applications of HiPer FRED 2TM Diodes
Switching Power Supplies
The fast recovery time and low forward voltage drop of the HiPer FRED 2TM diodes make them ideal for use in switching power supplies. They help to reduce switching losses and improve the efficiency of the power supply, resulting in better performance and lower operating costs.
Motor Drives
In motor drives, the HiPer FRED 2TM diodes are used to rectify the AC input and provide a stable DC output. Their fast switching capabilities and low conduction losses ensure that the motor operates efficiently and reliably.
Renewable Energy Systems
Solar inverters and wind turbines rely on high-performance diodes to convert and regulate power. The HiPer FRED 2TM diodes are well-suited for these applications due to their ability to handle high currents and voltages while maintaining low losses.
Automotive Electronics
The compact size and high reliability of the HiPer FRED 2TM diodes make them suitable for use in automotive electronics, where space and performance are critical factors. They are used in various systems, including alternators, battery chargers, and traction inverters.

Understanding the different types of power diodes and their specific applications is crucial for designing efficient and reliable electronic systems. Duken's HiPer FRED 2TM diodes stand out for their ultra-fast reverse recovery time, low forward voltage drop, and high current density. These features make them an excellent choice for high-frequency and high-power applications, ensuring optimal performance and longevity. Whether you are working on a switching power supply, motor drive, or renewable energy system, Duken's HiPer FRED 2TM diodes provide the advanced performance you need.
