An 800A phase control thyristor is a high-power semiconductor device that must be installed with careful attention to cooling, pressure, insulation, and electrical layout. In heavy industrial equipment, the thyristor often controls large AC loads where current changes rapidly and heat generation is continuous. A successful installation is not only about selecting the correct rated device. It is about building a stable operating environment around the device so that it can perform reliably under real production conditions.

The installation process should begin with a review of the AC power regulators datasheet KP800A-6500V 800A phase control thyristor specifications. The datasheet provides essential information about voltage class, current capacity, surge rating, gate trigger characteristics, and thermal resistance. These values help engineers decide whether the thyristor is suitable for the target equipment. In high-voltage systems, the blocking voltage margin is especially important because transients from transformers, motors, or long cables may exceed normal line voltage.

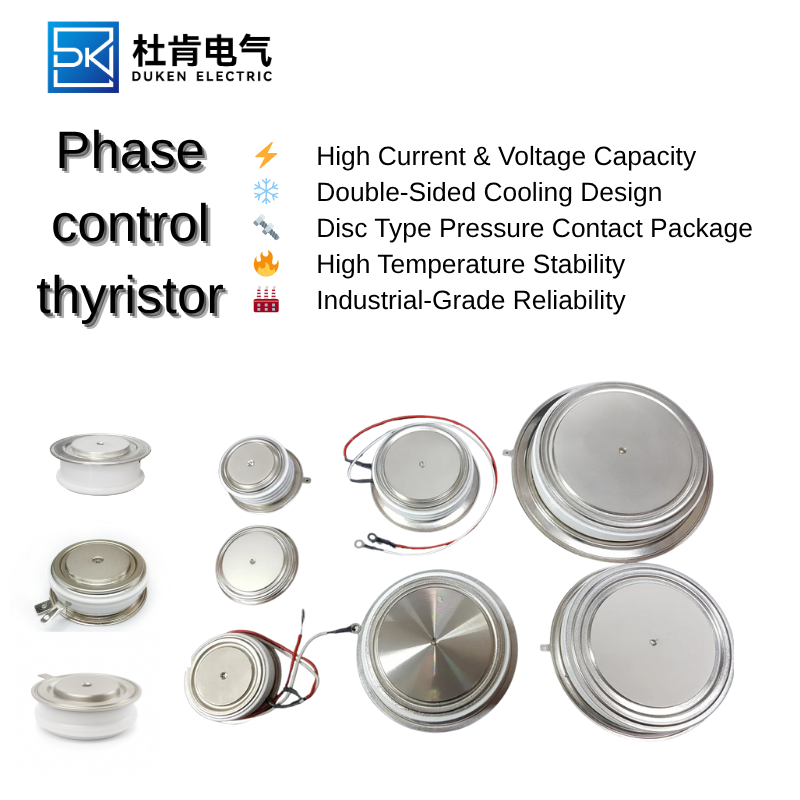

Mechanical mounting is the next major concern. A disc-type thyristor must be clamped evenly between heat sinks. The contact faces should be flat, clean, and free from metal particles. If the pressure is too low, thermal resistance increases and the device may overheat. If the pressure is too high, the silicon structure or ceramic package may be damaged. The correct mounting force should always match the value recommended in the AC power regulators datasheet KP800A-6500V 800A phase control thyristor documentation.

Cooling design determines whether the device can survive long-term operation. In applications such as mining equipment power control forced-cooling heat sink 800A phase control thyristor assemblies, forced cooling is usually necessary because the cabinet may operate in hot, dusty, and vibration-prone environments. Fans should be positioned to move air through the full heat sink surface rather than only across one side. Air filters, airflow switches, and temperature sensors should be included to prevent hidden overheating.

For heating applications, thermal stability is equally important. A large-scale heating elements 6500 V VRRM 800A phase control thyristor system may run for many hours at partial or full conduction. This creates continuous thermal load on the heat sink and cabinet ventilation system. Engineers should calculate the expected power loss, verify the heat sink rating, and confirm that cabinet temperature remains within acceptable limits during full-load operation.

Electrical installation should focus on short, strong, and well-supported current paths. Busbars must have enough cross-sectional area to carry the rated current without excessive temperature rise. Sharp edges should be avoided because they can increase electric field stress in high-voltage areas. For a large-scale heating elements 6500 V VRRM 800A phase control thyristor controller, proper phase spacing and insulation barriers are necessary to reduce flashover risk.

Gate signal wiring must be separated from high-current conductors. The gate circuit controls when the thyristor turns on, so interference can affect output stability. Shielded cables or twisted pairs are helpful in electrically noisy environments. The firing pulse should be strong enough to trigger the device consistently across temperature and load variations. Weak firing signals may cause delayed conduction, uneven current sharing, or unnecessary heating.

Protection devices should be installed as part of the overall thyristor system. RC snubber networks can reduce dv/dt stress, while surge arresters can absorb high-voltage spikes. Semiconductor fuses should be selected for fast response and proper coordination with the thyristor’s surge capability. In a mining equipment power control forced-cooling heat sink 800A phase control thyristor cabinet, protection is especially important because supply conditions may be unstable and mechanical loads may change suddenly.

Commissioning should be performed step by step. First, check insulation resistance, polarity, cooling fan direction, gate pulse waveform, and all mechanical fasteners. Then apply power under controlled conditions. Monitor current, voltage, heat sink temperature, and output waveform. If the system uses large-scale heating elements 6500 V VRRM 800A phase control thyristor control, increase the load gradually and verify that the heating elements respond smoothly to phase-angle adjustment.

After commissioning, maintenance should not be ignored. Dust buildup can block airflow and reduce insulation strength. Fan bearings can wear over time. Loose busbar connections can create heat and electrical noise. A maintenance schedule should include cleaning, temperature checks, tightening inspections, and waveform observation. For mining equipment power control forced-cooling heat sink 800A phase control thyristor installations, shorter inspection intervals are recommended because harsh environments accelerate wear.

A reliable installation combines correct rating selection with careful mechanical and thermal engineering. The AC power regulators datasheet KP800A-6500V 800A phase control thyristor should guide the technical limits, while field experience should shape the cooling, protection, and maintenance plan. When properly installed, an 800A phase control thyristor can deliver stable AC power control for demanding industrial systems with long service life and reduced downtime.
