What Is A Mosfet For Dummies

What Is A Mosfet For Dummies

When it comes to electronics, few components are as versatile and indispensable as the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). For those new to the world of electronics, the term "MOSFET" might sound intimidating, but understanding its function and application can open up a whole new realm of possibilities. In this guide, we'll break down what a MOSFET is and highlight the advantages of using Duken's Silicon N-Channel Power MOSFET 22.

What is a MOSFET?
A MOSFET is a type of transistor used for amplifying or switching electronic signals. It operates by controlling the flow of current between two terminals, known as the source and the drain, using a third terminal called the gate. The key feature of a MOSFET is its ability to act as a switch or amplifier without the need for physical contacts, making it highly reliable and efficient.

How Does a MOSFET Work?
At its core, a MOSFET functions by creating a channel through which electrons can flow when a voltage is applied to the gate. Here’s a simplified breakdown:

Gate Voltage: When a positive voltage is applied to the gate relative to the source, it creates an electric field that attracts electrons to the oxide layer above the silicon substrate.
Channel Formation: These electrons form a conductive channel between the source and the drain, allowing current to flow.
Switching: By adjusting the gate voltage, the MOSFET can be turned on or off, effectively controlling the current.
Types of MOSFETs
There are two main types of MOSFETs: N-Channel and P-Channel. The primary difference lies in the type of charge carriers used:

N-Channel MOSFET: Uses electrons as the majority charge carriers. It requires a positive gate-to-source voltage to turn on.
P-Channel MOSFET: Uses holes as the majority charge carriers. It requires a negative gate-to-source voltage to turn on.

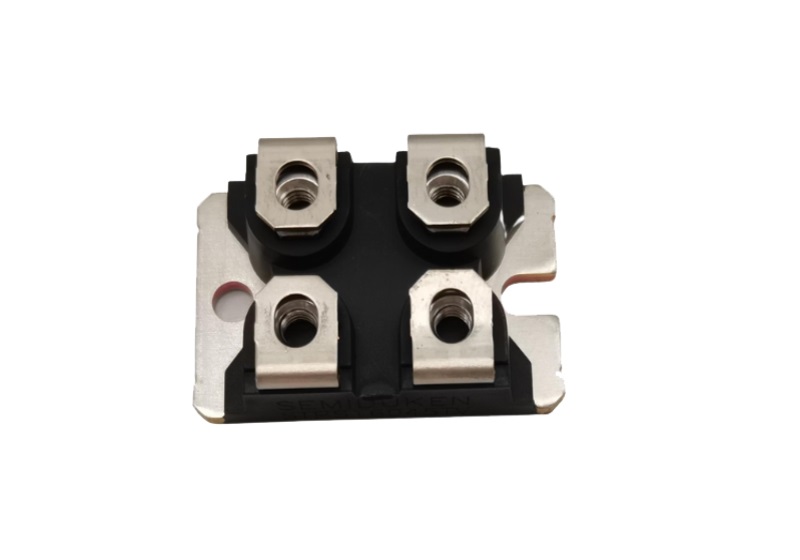

Duken's Silicon N-Channel Power MOSFET 22
Duken, a leading brand in the electronics industry, offers the Silicon N-Channel Power MOSFET 22, a high-performance component designed for a wide range of applications. Here are some of its key features and benefits:

High Efficiency and Low Resistance
The Duken Silicon N-Channel Power MOSFET 22 boasts low on-state resistance (Rds(on)), which minimizes power loss and heat generation. This makes it ideal for applications where efficiency and thermal management are critical, such as in power supplies, motor control systems, and automotive electronics.

Robust Design
Built to withstand harsh operating conditions, the Duken MOSFET 22 features a robust design with high surge capability. It can handle transient currents and voltage spikes, ensuring reliable performance even in demanding environments.

Easy Integration
With its compact size and standard pinout, the Duken Silicon N-Channel Power MOSFET 22 is easy to integrate into existing circuits. It is compatible with a variety of control circuits and can be used in both surface-mount and through-hole configurations.

Versatile Applications
The Duken MOSFET 22 finds applications in numerous fields:

Power Supplies: Used in switching power supplies to regulate voltage and current efficiently.
Motor Control: Ideal for driving DC motors and stepper motors in robotics and automation.
Automotive Electronics: Suitable for automotive lighting, fuel injection systems, and other vehicle electronics.
Consumer Electronics: Found in devices like smartphones, laptops, and home appliances.

Understanding the basics of MOSFETs is crucial for anyone interested in electronics, whether you're a hobbyist, a student, or a professional. The Duken Silicon N-Channel Power MOSFET 22 is a prime example of how advanced technology can simplify complex tasks and enhance performance. By choosing Duken, you gain access to a reliable, efficient, and versatile component that can elevate your projects to the next level. Whether you're building a simple circuit or designing a sophisticated system, the Duken MOSFET 22 is a valuable addition to your toolkit.
