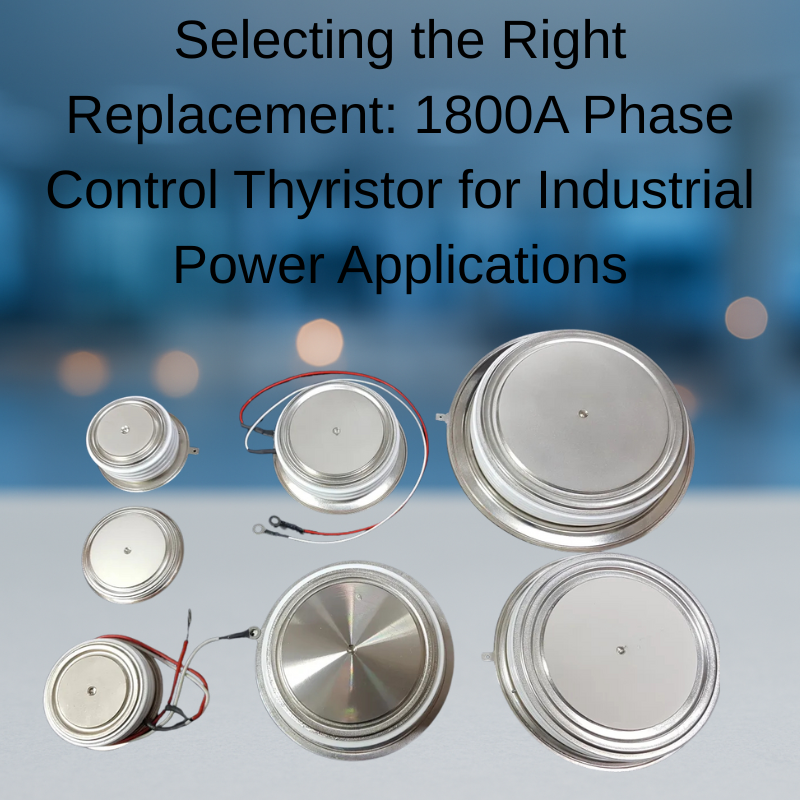

In high-current industrial applications, the performance and reliability of phase control thyristors are crucial to system efficiency and safety. When a component as critical as the 1800A phase control thyristor needs replacement, choosing the right part is about more than matching current ratings—it's about aligning with the application’s exact functional and environmental requirements. This article explores key considerations when replacing 1800A thyristors, particularly in systems like melting furnace rectifiers, DC link rectification in drives, and electro-plating rectifiers, where gate trigger control, thermal efficiency, and mechanical packaging all play vital roles.

Critical Role in Melting Furnace Rectifiers

Melting furnace rectifiers are high-current systems used in steel plants and foundries, requiring components with outstanding current handling and thermal endurance. A 1800A phase control thyristor replacement must maintain performance under harsh operating conditions, including high ambient temperatures and load cycling.

OEM-grade replacements ensure:

• Stable conduction during prolonged high-current operation

• Reliable gate trigger control across variable temperatures

• Low switching losses to reduce energy consumption

Failure to select a compatible thyristor can result in frequent tripping, reduced melting rates, or increased system downtime. A well-matched replacement must replicate the original part’s trigger characteristics to synchronize effectively with existing firing circuits in melting furnace rectifiers.

Enhancing Efficiency in DC Link Rectification Drives

In traction drives, wind turbines, and other large-scale drive systems, DC link rectification in drives plays a vital role in converting AC power to stable DC. A key metric for performance in these systems is low on‑state voltage drop, which reduces power loss and heat generation.

A replacement 1800A phase control thyristor with improved semiconductor construction can lower the conduction loss. Benefits include:

• Higher efficiency and reduced power dissipation

• Lower heat sink requirements

• Extended system life due to lower thermal stress

Moreover, the gate trigger control must be finely tuned to respond reliably to digital control logic or analog gate pulses in modern rectifier designs.

Structural Compatibility in Electro-Plating Rectifiers

Electro-plating systems require high-current rectification with stable output and resistance to environmental contaminants. The Aluminium housing disc package is preferred due to its compact size, superior thermal dissipation, and corrosion resistance—especially in moist or chemically reactive environments.

When sourcing a replacement 1800A phase control thyristor for electro-plating rectifiers, it's important to ensure:

• Full compatibility with the existing Aluminium housing disc package

• Equivalent or better thermal conductivity and insulation design

• Robust mechanical strength for vibration and torque stress

High-reliability gate trigger control also ensures smooth operation of plating voltage, avoiding voltage dips that can compromise coating quality.

Practical Guidelines for Selecting Replacement Parts

To ensure compatibility and long-term performance, follow these steps when replacing a 1800A phase control thyristor:

1. Match Electrical Characteristics: Current rating, voltage blocking capacity, and low on‑state voltage drop.

2. Verify Mechanical Design: Ensure the Aluminium housing disc package matches mounting dimensions and terminal connections.

3. Check Control Interface: Gate sensitivity, hold-off voltage, and gate trigger control pulse requirements must align with the existing driver.

4. Assess the Application Environment: Temperature ranges, humidity, and exposure to chemicals must be factored into insulation and sealing requirements.

Working with OEMs or ODMs offering full datasheet equivalence ensures the replacement part performs identically or better than the original. Some suppliers offer enhanced versions of legacy parts that offer energy savings and longer lifecycle.

Conclusion: Smart Replacement Ensures Seamless Operation

Replacing a 1800A phase control thyristor is not just a maintenance task—it’s a strategic move to preserve system uptime and performance. For systems like melting furnace rectifiers, DC link rectification in drives, or electro-plating rectifiers, ensuring compatibility with parameters such as gate trigger control, low on‑state voltage drop, and Aluminium housing disc package design is vital.

When these elements are properly matched, the replacement component can even exceed the performance of the original, providing enhanced durability, energy efficiency, and cost-effectiveness in demanding industrial settings.
