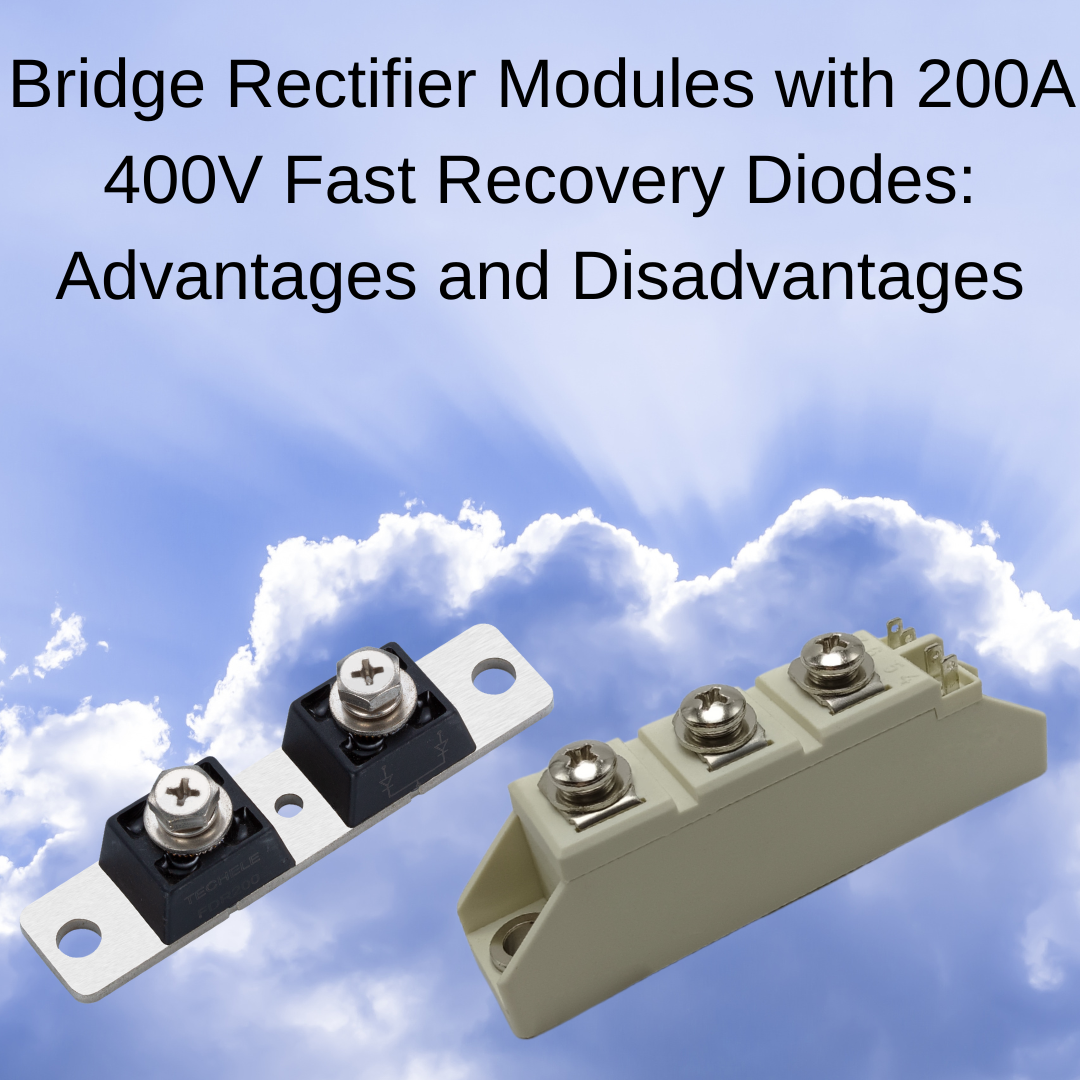

Bridge rectifier modules are essential components in many high-power applications, providing efficient AC to DC conversion. When paired with 200A 400V fast recovery diodes, these modules offer significant benefits in terms of speed, reliability, and power handling. Key configurations include 3/4″-16UNF stud type automotive application high reliability 200A 400V fast recovery diode, common anode low conduction loss used in welding machine 200A 400V fast recovery diode, and dual diode for inverter drives high reliability 200A 400V fast recovery diode, each tailored for specific industrial and automotive needs.

Stud Type Modules for Automotive Applications

The 3/4″-16UNF stud type automotive application high reliability 200A 400V fast recovery diode bridge rectifier modules are designed for robustness and durability in harsh automotive environments. These modules can withstand high vibration and temperature fluctuations while maintaining consistent current flow, making them ideal for electric vehicles, battery chargers, and power management systems.

Stud-type mounting ensures mechanical stability and allows for higher current handling. Engineers benefit from the reliability of this configuration, which reduces failure risks and maintenance requirements in automotive systems.

Common Anode Modules for Welding Applications

Common anode low conduction loss used in welding machine 200A 400V fast recovery diode modules provide low conduction resistance, ensuring efficient energy transfer in high-current welding equipment. These modules support rapid switching and high-temperature operation, crucial for maintaining weld quality and consistent performance.

The common anode design simplifies the wiring of welding circuits and enhances system reliability. By reducing conduction losses, these modules help maintain efficiency while minimizing heat generation, ensuring longer service life in industrial welding machines.

Dual Diode Modules for Inverter Drives

The dual diode for inverter drives high reliability 200A 400V fast recovery diode configuration is optimized for inverter-based power electronics. By integrating two diodes into a single package, these modules allow efficient current sharing and improved thermal management, essential for applications in motor drives, renewable energy inverters, and industrial automation systems.

Dual diode modules offer enhanced surge current handling and high reliability, ensuring consistent performance even in demanding environments. They are particularly useful in inverter designs where fast recovery and low reverse losses are critical.

Pros and Cons of Bridge Rectifier Modules

Pros:

• High current handling capability

• Fast recovery times for improved switching efficiency

• High reliability in automotive, welding, and inverter applications

• Reduced maintenance due to robust packaging

Cons:

• Larger physical size compared to single diodes

• Higher initial cost for specialized configurations

• Thermal management considerations are necessary for high-power applications

Conclusion

Bridge rectifier modules with 200A 400V fast recovery diodes offer a versatile solution for automotive, welding, and inverter drive applications. Choosing the right configuration—3/4″-16UNF stud type automotive application high reliability 200A 400V fast recovery diode, common anode low conduction loss used in welding machine 200A 400V fast recovery diode, or dual diode for inverter drives high reliability 200A 400V fast recovery diode—ensures optimal performance, efficiency, and long-term reliability.

Proper selection and integration of these modules can enhance system durability, improve energy efficiency, and reduce downtime in demanding industrial and automotive environments.
