DS-A Series

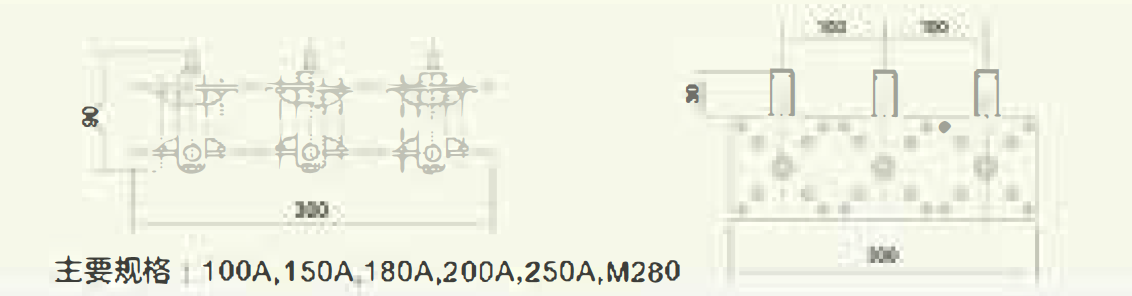

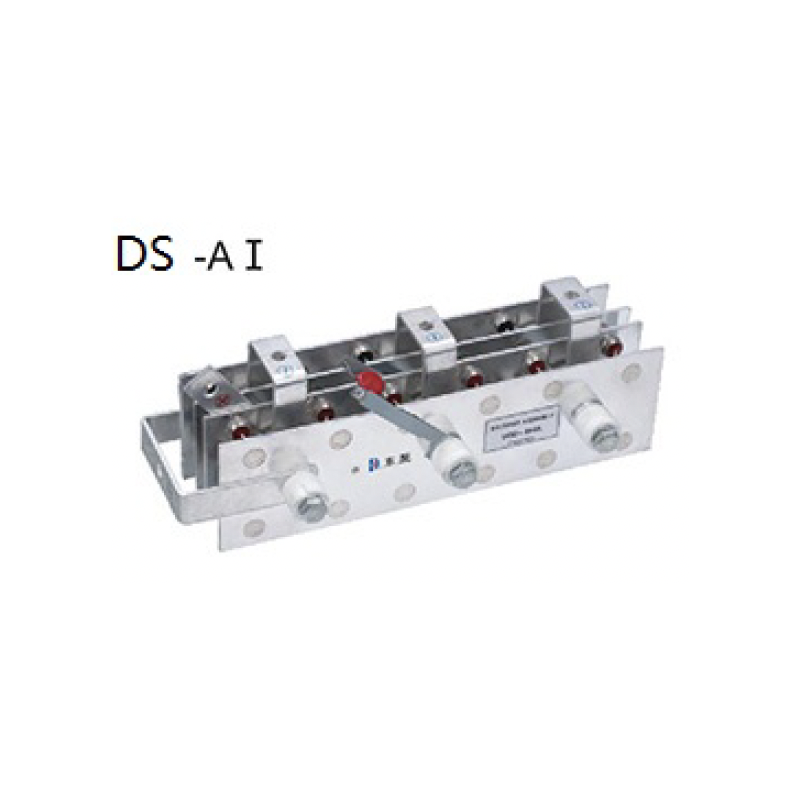

| DS -A1 | Main specifications ：100A,150A 180A,2OOA,250A,M280 |
 |  |
| DS-A2 | Main specifications ：100A,150A 180A,2OOA,250A,M280 |
 |  |
| DS-A3 | Main specifications ：100A,150A 180A,2OOA,250A,M280 |
 |  |
DS-B Series

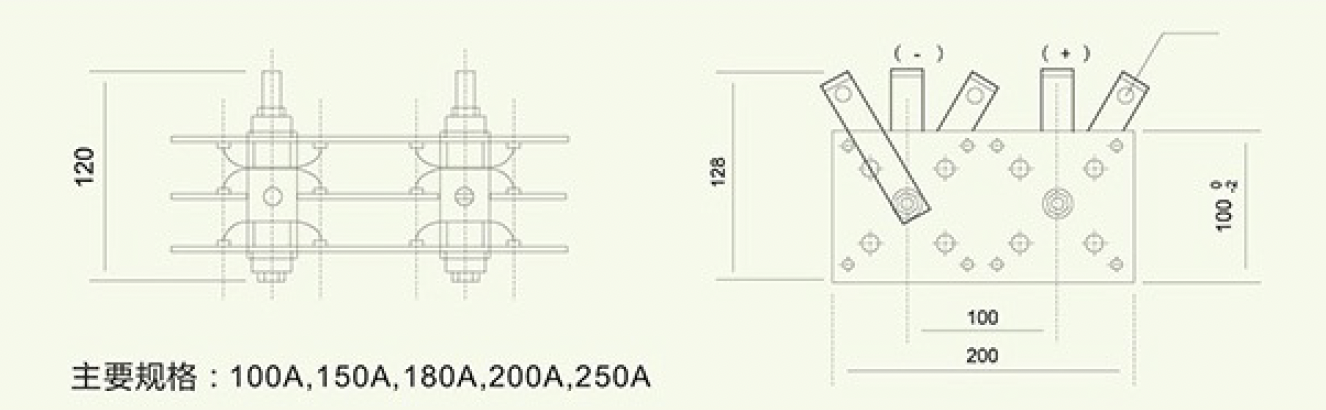

| DS-B1 | Main specifications ：100A,150A 180A,200A,250A |
 |  |
| DS-C1 | Main specifications ：200A,250A,REF2900,300A,REF3500,400A,REF4500,PTS290B |
 |  |
| DS-C2 | Main specifications ：200A,250A,REF2900,300A,REF3500,400A,REF4500,PTS290B |
 |  |

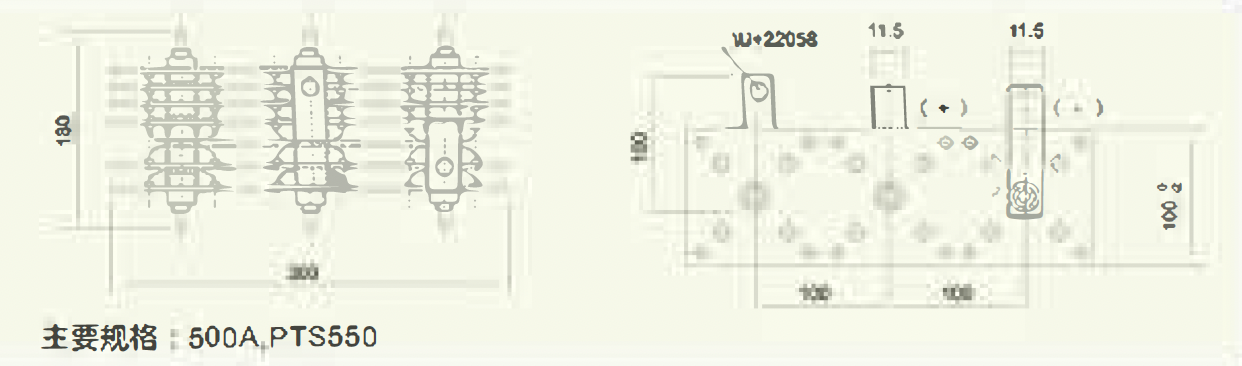

| DS-D1 | Main specifications :500A PTS550 |
 |  |

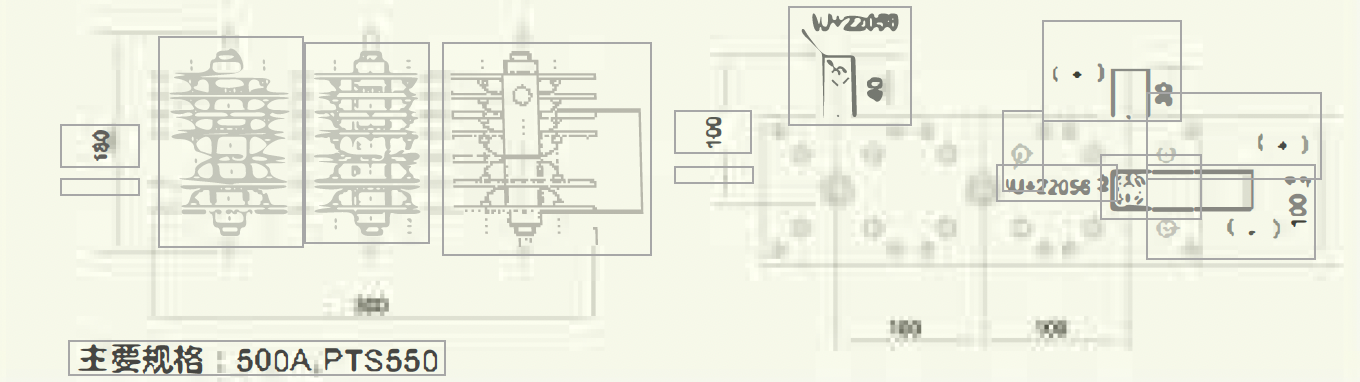

| DS-D2 | Main specifications ：500A PTS550 |
 |  |
DS-E Series
| DS-E1 | Main specifications ：100A,150A 180A,200A,250A,M280 |
 |  |

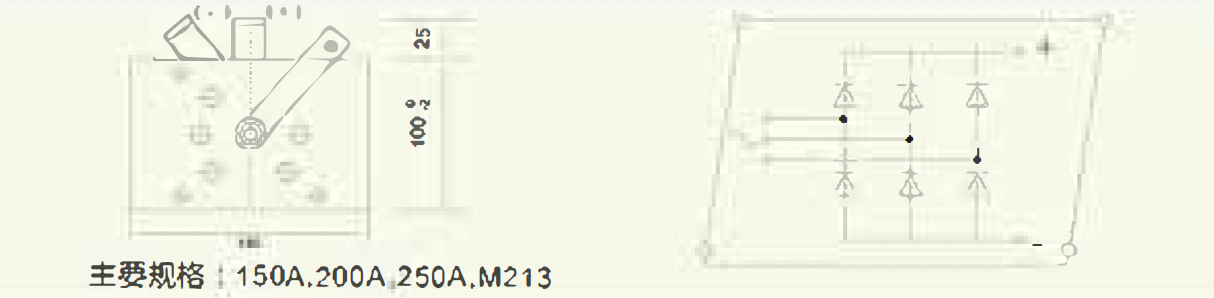

| DS-E2 | Main specifications ：150A.2OOA 250A,M213 |
|  |

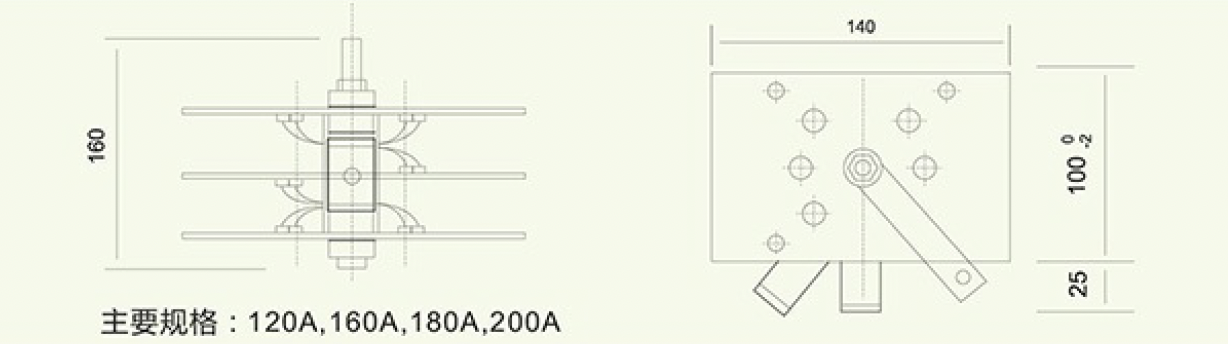

| DS-F1 | Main specifications ：120A.160A,180A.200A |
 |  |
| 型号 | 通态电流 | 温升 | 反向电压 | 正向压降 | 漏电流 | 结温 | 绝缘电压 | 安装力 |
| Type | l0 | T | VRRM | VTM | IRRM | Tjm | Viso | Mounting Force |
| A | ℃ | V | V | mA | ℃ | V | KN | |
| DS | 50 | 65 | 500-1800 | 1.15 | 5 | 150 | 2500 | 12 |
| 100 | 65 | 500-1800 | 1.15 | 6 | 150 | 2500 | 12 | |
| 150 | 70 | 500-1800 | 1.15 | 8 | 150 | 2500 | 12 | |
| 180 | 75 | 500-1800 | 1.15 | 8 | 150 | 2500 | 12 | |
| 250 | 80 | 500-1800 | 1.15 | 9 | 150 | 2500 | 12 | |
| 300 | 85 | 500-1800 | 1.15 | 10 | 150 | 2500 | 12 | |
| 350 | 85 | 500-1800 | 1.15 | 10 | 150 | 2500 | 12 | |
| 400 | 85 | 500-1800 | 1.15 | 15 | 150 | 2500 | 12 | |
| 500 | 100 | 500-1800 | 1.15 | 20 | 150 | 2500 | 12 |
