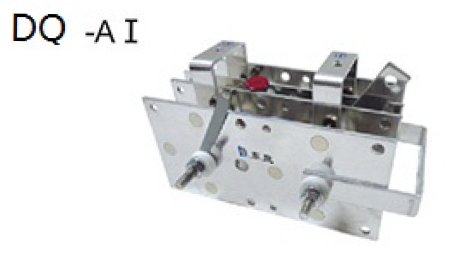

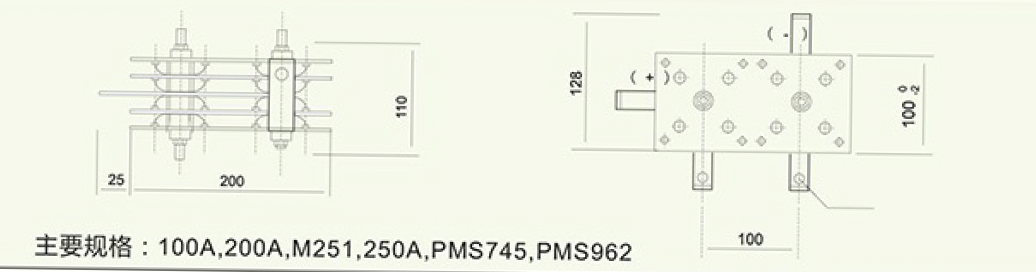

| DQ-A1 | Main specification: 100A, 200A,M251,250A,PMS745,PMS962 |
 |  |

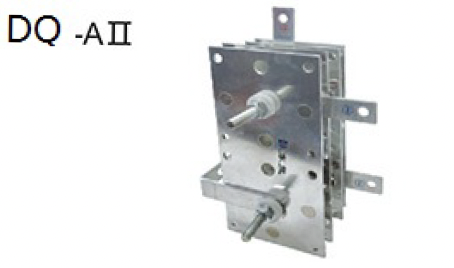

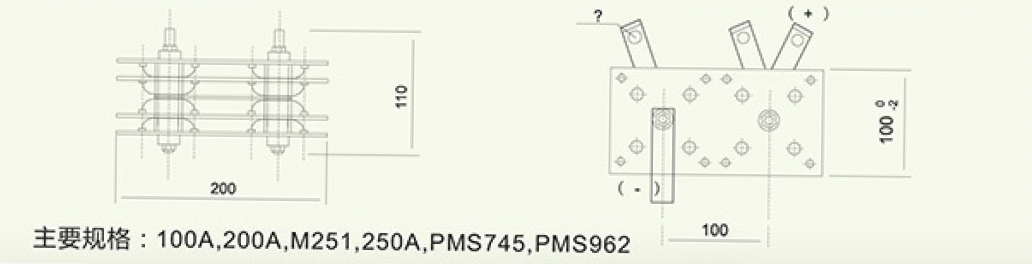

| DQ-A2 | Main specification: 100A, 200A,M251,250A,PMS745,PMS962 |
 |  |

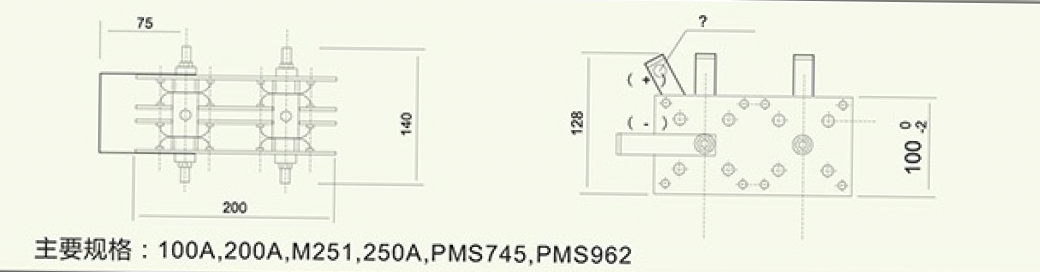

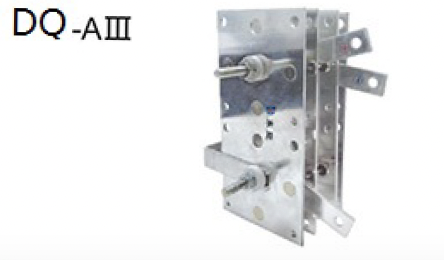

| DQ-A3 | Main specification: 100A, 200A,M251,250A,PMS745,PMS962 |
 |  |

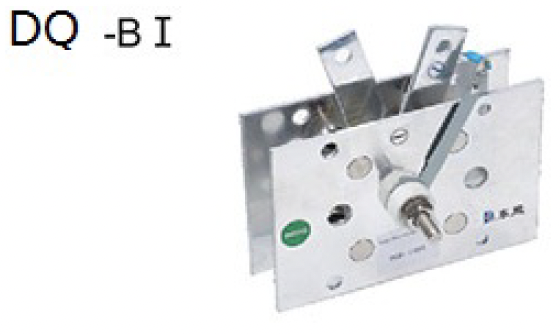

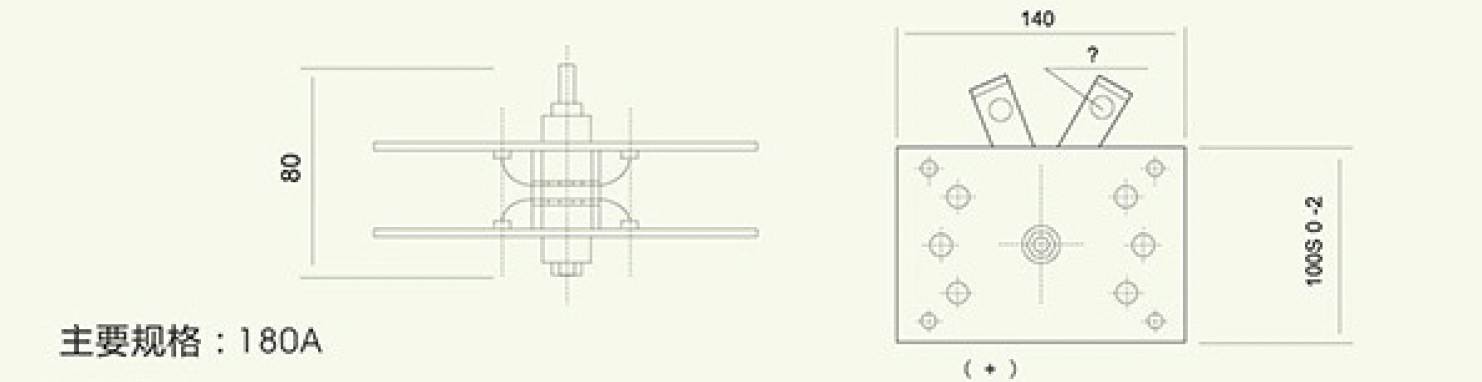

| DQ-B1 | Main specification: 180A |
 |  |

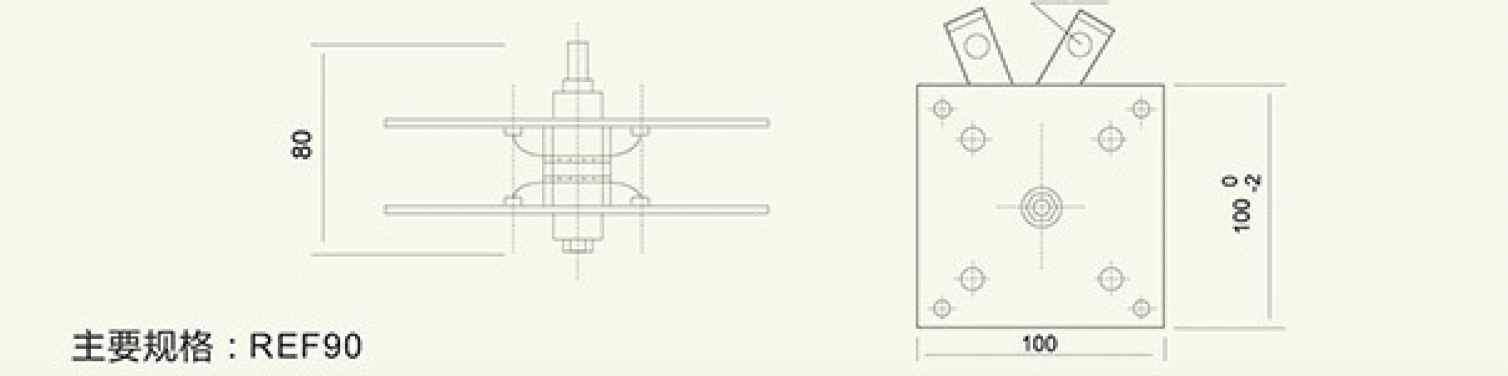

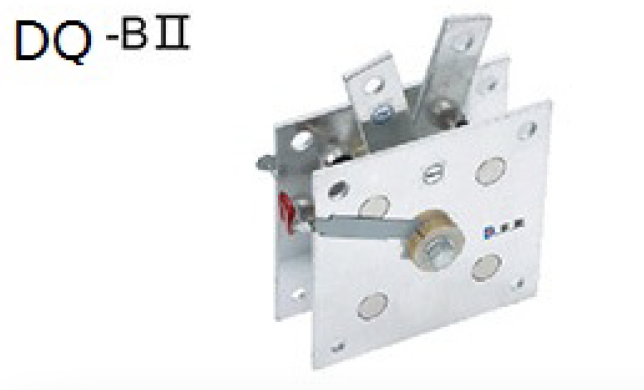

| DQ-B2 | Main specification: REF90 |
 |
|

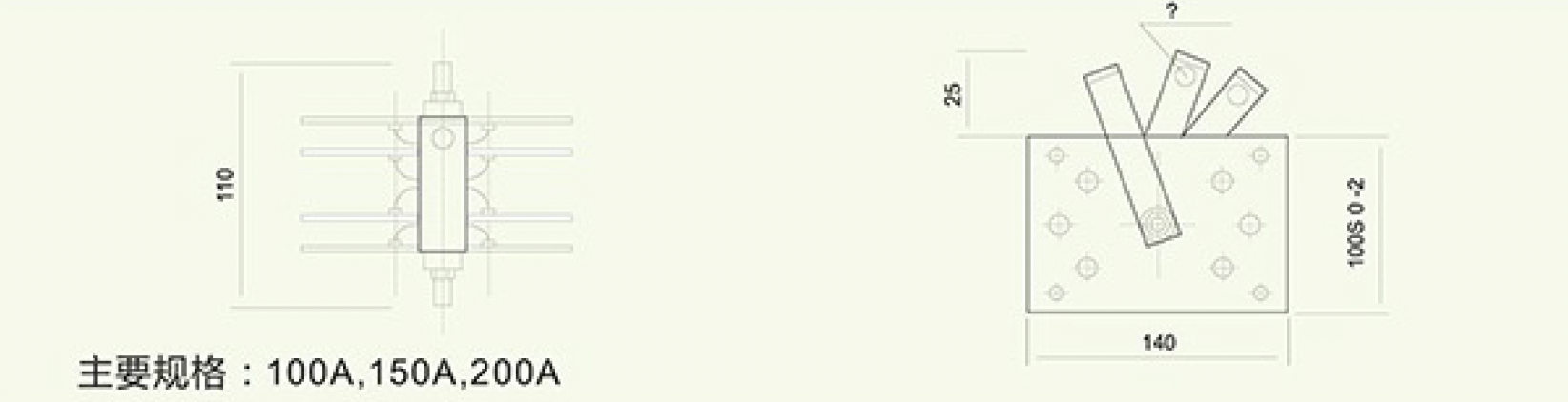

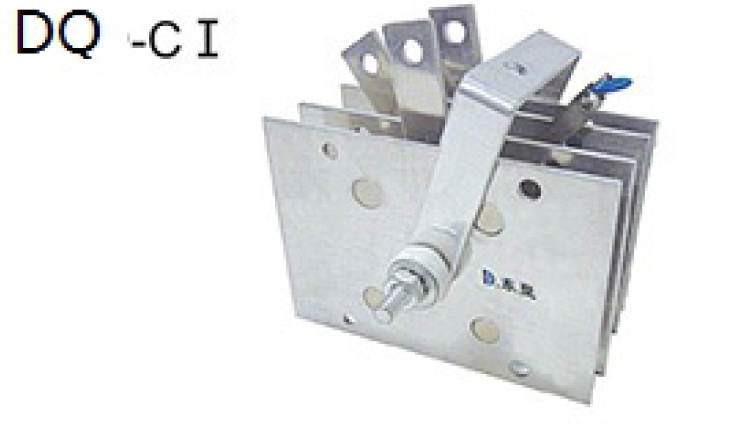

| DQ-C1 | Main specification: 100A,150A,200A |
 |  |
| 型号 | 通态电流 | 温升 | 反向电压 | 正向压降 | 漏电流 | 结温 | 绝缘电压 | 安装力 |
| Type | lo | T | VRRM | VTM | IRRM | Tjm | Viso | Mounting Force |
| A | ℃ | V | V | mA | ℃ | V | KN | |
| DQ | 50 | 65 | 500-1800 | 1.15 | 5 | 150 | 2500 | 12 |
| 90 | 65 | 500-1800 | 1.15 | 6 | 150 | 2500 | 12 | |
| 100 | 70 | 500-1800 | 1.15 | 8 | 150 | 2500 | 12 | |
| 150 | 75 | 500-1800 | 1.15 | 8 | 150 | 2500 | 12 | |
| 180 | 80 | 500-1800 | 1.15 | 9 | 150 | 2500 | 12 |
