Semiconductor Equipment Protection Fuse 2

Any Questions?
+86-13720244449

Send Email
sales@semiduken.com

DESCRIPTION

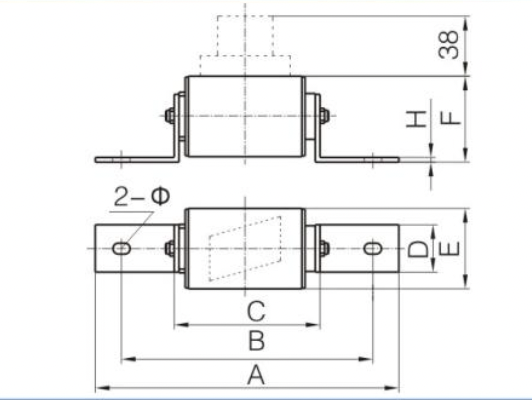

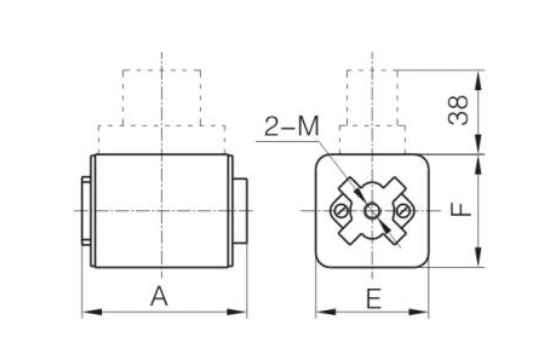

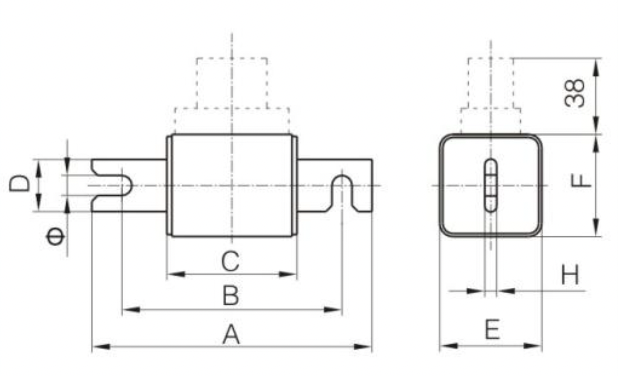

P2.1	L2.1	Z2.1

No.	Part number	Voltage (V)	Rated current (A)	Structure	Size(mm)									Outline No.
					A	B	C	D	E	F	H	M	Φ
1	RS4-500/口-P101N	500	32,40,50,63,80, 125,160,200,250. 280,315,355,(400)	P	51				51	51		M8 x12		P2.1
	RS4-800/口-P101N	800			75
	RS4-1000/口-P101N	1000			80
	RS4-1500/口-P101N	1500	100,125,160,200, 250,280,315		127
	RS4-2000/口-P101N	2000
2	RS4-500/口-P102N	500	200,250,280,315, 355,400,500	P	54				58	58		M10 x8		P2.1
	RS4-800/口-P102N	800			74
3	RS4-500/口-L101N	500	32,40,50,63,80, 125,160,200,250, 280,315,355	L	157	124	57	30	51	54	3		7 x11	L2.1
	RS4-800/口-L101N	800			181	148	81
	RS4-1000/口-L101N	1000			186	153	86
	RS4-1500/口-L101N	1500	50,100,125,160, 200,250,315		233	200	133
	RS4-2000/口-L101N	2000
4	RS4-380/口-Z101N	380	100,200,315,400	Z	116	86	42	26	51	51	6		10.5	Z2.1
	RS4-660/口-Z101N	660	100,125,160,200, 250,280,315,350
	RS4-1000/口-Z101N	1000			140	110	66
5	RS4-380/口-Z102N	380	200,250,280,315, 355,400,500	Z	120	90	48	32	58	58	6		10.5	Z2.1
	RS4-660/口-Z102N	660
	RS4-1000/口-Z102N	1000			140	110	68
6	RS4-380/口-Z103N	380	355,400,450,500. 560,630	Z	120	90	48	38	67	67	6		10.5	Z2.1
	RS4-660/口-Z103N	660
	RS4-1000/口-Z103N	1000			140	110	68
