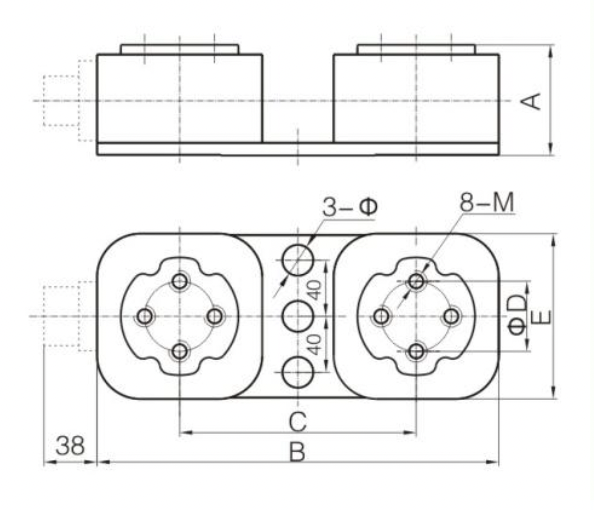

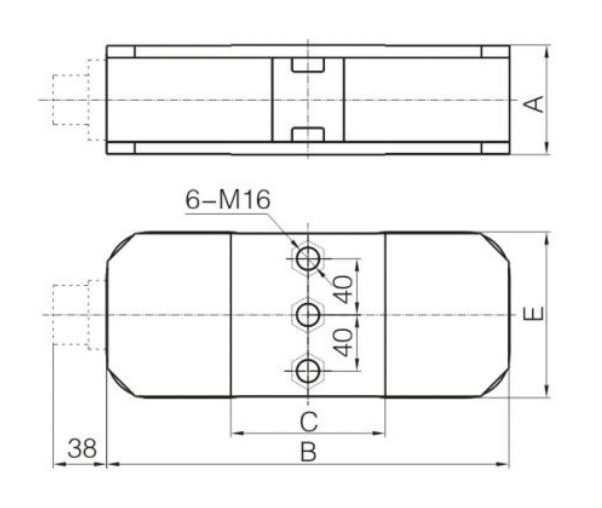

P12.1 P12.2
| No. | Part number | Voltage (V) | Rated current (A) | Structure | Size(mm) | Outline No. | ||||||||
| A | B | C | D | E | F | H | M | φ | ||||||
| 1 | RS8-380/口-P1b207S | 380 | 5000.5600,6000， 6400,6600.(6800) | P1b | 60 | 288 | 169 | 50 | 118 | M12 x10 | 3- φ17 | P12.1 | ||
| RS8-500/口-P1b207S | 500 | |||||||||||||
| RS8-800/口-P1b207S | 800 | 5600,6000,6400 | 80 | |||||||||||
| RS8-1000/口-P1b207S | 1000 | 4600,5000,5400. 5600,6400 | 100 | |||||||||||
| RS8-1250/口-P1b207S | 1250 | |||||||||||||
| 2 | RS8-380/口-P2b207S | 380 | 5000.5600,6000. 6400,660o,(6800) | P2b | 60 | 288 | 110 | 118 | 6- M16 | P12.2 | ||||
| RS8-500/口-P2b207S | 500 | |||||||||||||
| RS8-800/口-P2b207S | 800 | 5600,6000,6400 | 80 | |||||||||||
| RS8-1000/口-P2b207S | 1000 | 4600,5000,5400. 5600,6400 | 100 | |||||||||||
| RS8-1250/口-P2b207S | 1250 | |||||||||||||
We’re here to listen.
Our Main Products include: Rectifier Diodes & Thyristor & relevant rectifying devices; Power module, Bridge rectifier, Press-fit Diode, Solid state relay, Intelligent module, Heatsink, Welding machine device, Rectifier equipments, Switch power supply etc
