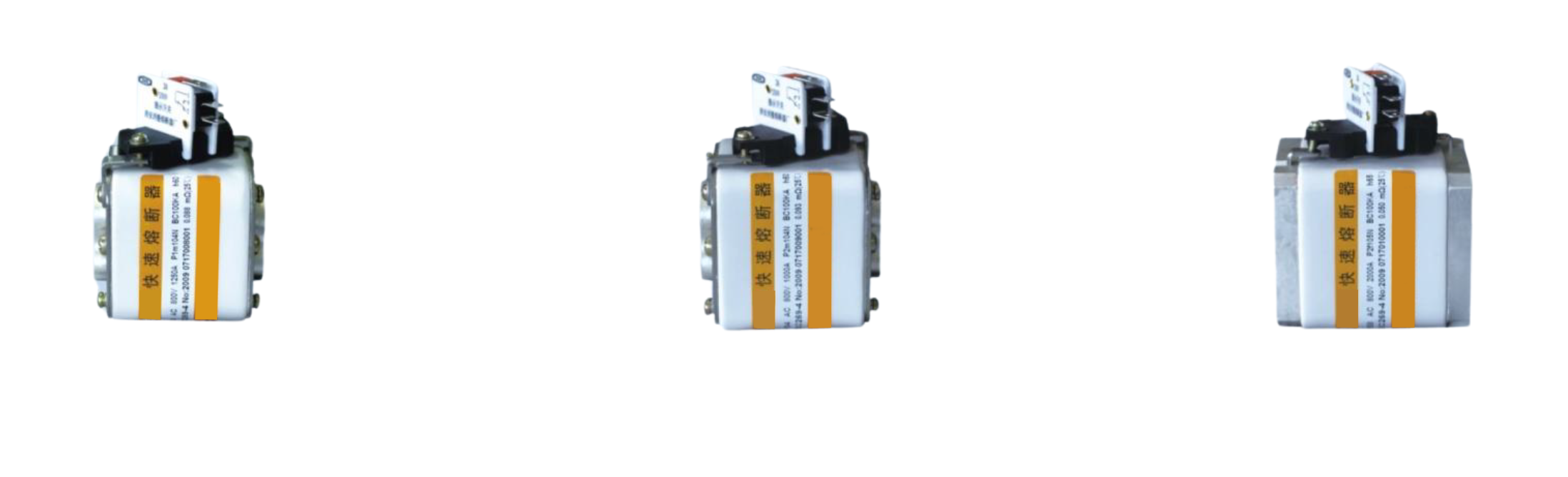

Semiconductor Equipment Protection Fuse 4

Any Questions?
+86-13720244449

Send Email
sales@semiduken.com

DESCRIPTION

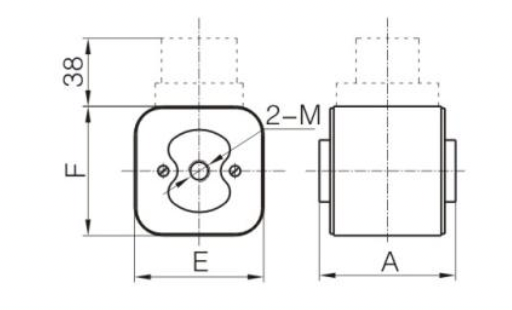

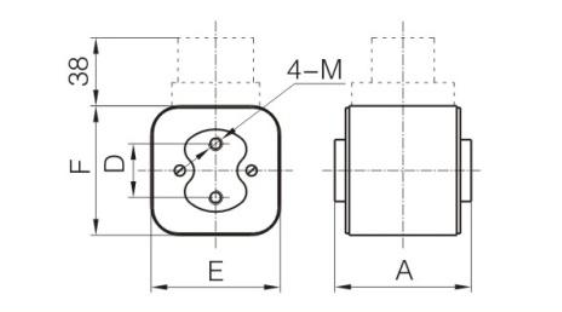

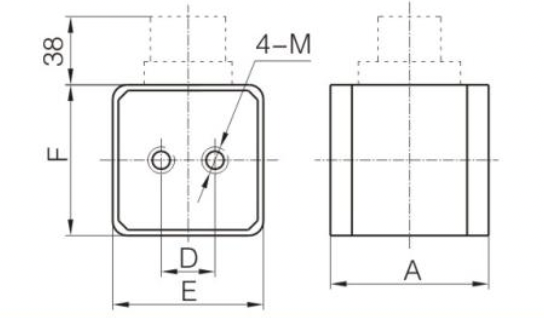

P4.1	P4.2	P4.3

No.	Part number	Voltage (V)	Rated current (A)	Structure	Size(mm)								Outline No.
					A	B	C	D	E	F	H	M
1	RS4-500/口-P1m104N	500	500,560,630,700, 800,900,1000, 1200,(1250)	P1m	58				72	72		M10 x9	P4.1
	RS4-800/口-P1m104N	800			78
	RS4-1000/口-P1m104N	1000	630,800,900,1000		95
2	RS4-500/口-P2m104N	500	500,560,630,700, 800,900,1000, 1200,(1250)	P2m	58			30	72	72		M8 x9	P4.2
	RS4-800/口-P2m104N	800			78
	RS4-1000/口-P2m104N	1000	630,800,900,1000		95
3	RS8-500/口-P1m105	500	900,1000,1100, 1250,1400,1500	P1m	54				74	74		M10 x9	P4.1
	RS8-800/口-P1m105	800			70
	RS8-1000/口-P1m105	1000	700,1000,1250,1400		83
	RS8-1250/口-P1m105	1250	500,700,1000,1250		96
	RS8-1500/口-P1m105	1500	450,560,630,700, 800,900,(1000)		108
	RS8-2000/口-P1m105	2000			130
4	RS8-500/口-P2m105	500	900,1000,1100, 1250,1400,1500	P2m	54			30	74	74		M8 x9	P4.2
	RS8-800/口-P2m105	800			70
	RS8-1000/口-P2m105	1000	700,1000,1250,1400		83
	RS8-1250/口-P2m105	1250	500,700,1000,1250		96
	RS8-1500/口-P2m105	1500	450,560,630,700, 800,900,(1000)		108
	RS8-2000/口-P2m105	2000			130
5	RS8-500/口-P2f105	500	1250,1400,1500, (1600),1800,2000	P2f	58			40 (30)	74	74		M10 x9	P4.3
	RS8-800/口-P2f105	800			74
	RS8-1000/口-P2f105	1000	1000,1100,1250, 1400,1600,1800		87
	RS8-1250/口-P2f105	1250			100
	RS8-1500/口-P2f105	1500	450,560,630,700, 800,900,(1000)		112
	RS8-2000/口-P2f105	2000			134
