DESCRIPTION

· It can realize local control remote control, 4-20ma and 0-5V/0-10V/potentiometer, no disturbance switching.
·Open-loop phase shift, constant voltage, constant current, constant power, constant cycle, variable cycle, constant power + constant cycle functions.
·It can realize the full RS485 communication network detection and control function.
·High-precision voltage, current, power, digital tube real-time display.
·The fan automatically controls the operation to prolong the life of the fan.
·Over current, short circuit, current unbalance, over voltage, over temperature, load disconnection, frequency and other protection functions.
·Imported components are used to achieve reliable control of inductive loads.

Advanced intelligent digital display three phase SCR Power regulator, maximum 200 amps

-Three phase power regulator, auto phase detection
-Soft-start function to protect SCR and load against surge current
-Integrated display with various LED indicator for status and error display
-Integrated heatsink and fans with temperature detection
-Over temperature alarm, output protection after alarm on
-Maximum and minimum output configurable
-Auto/manual control bumpless transfer
-Run/Stop function
-RS-485 modbus RTU communication optional
-TC-200S with 1 alarm output as the standard features, Relay output(NO+NC)
-Rated load voltage 110~480Vac 50/60HZ
-Power supply for SCR to work is 100-240Vac
-Input, 0-10Vdc, 4-20mA, 0-5Vdc, 1-5Vdc, 2-10Vdc, 0-20mA, 0-10mA
-The SCR only works with resistive load, can’t work with capacitive load or inductive load
-Available with 100 amps, 125 amps, 150 amps, 175 amps, 200 amps, maximum 200 amps.

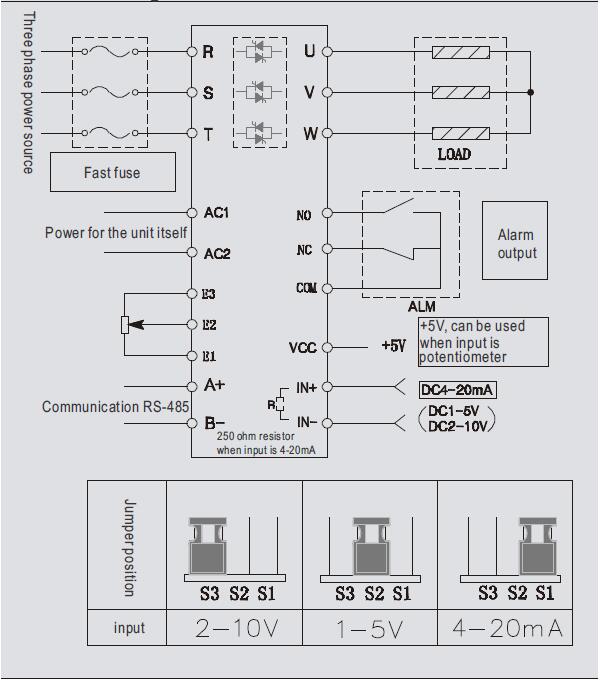

Connection diagram
