Wuzheng provides fans of various types and specifications with high quality and efficiency. Our fans design with advanced technology, having more stable performance, which have been regarded as the preferred heat dissipation brand by many machine manufacturers. Nowadays, we have been praised a lot in the industry.
If you would like to get more detailed quotation, please contact our sales department. Thank you!

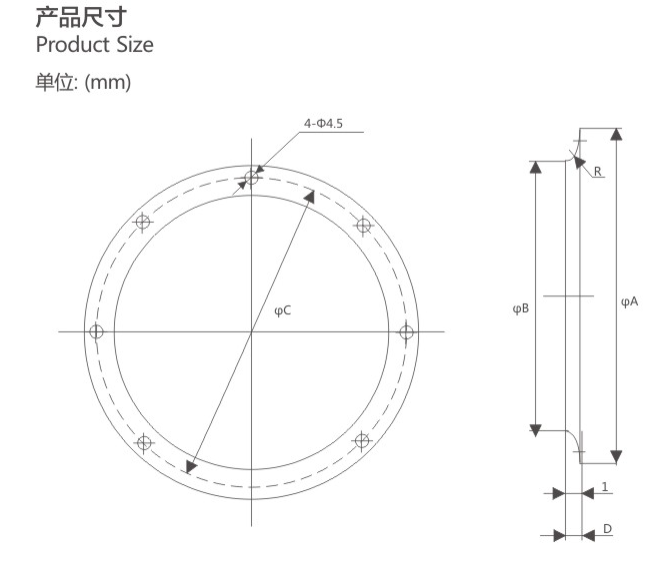

1.Description of dimensions
| 型号 Model | A | B | C | D | R |
| 133FLW2 | 130 | 84 | 116 | 13 | 8 |
| 175FLW2 | 175 | 122 | 160 | 14 | 10 |
| 180FLW2 | 180 | 127.5 | 166 | 14 | 10 |
| 190FLW2 | 190 | 126.5 | 176 | 14 | 10 |
| 220FLW2 | 220 | 155 | 206 | 20 | 22 |
| 225FLW2 | 225 | 147 | 211 | 28 | 25 |
| 250FLW2 | 250 | 165 | 236 | 31 | 28 |
| 280FLW2 | 280 | 178 | 255 | 25 | 25 |
2. Main parameters
| 型号 Model | 交通电压 Rated voltage (M) | Freq (Hz) | 相数 Phnse | 功率 Input power (W) | 电流 Current (A) | 转速 Speed (Rpm) | 风量 Air Flow (CMM) | 静压 static pressure (Inch-h,O) | 噪膏 Noise Level (dB-A) | 重量 工作电容 Weight UF/VOB (Gram) | |
| 133FLW2 | 220 | 50 | 1 | 30 | 0.11 | 2700 | 4.5 | 185 | 58 | 0.6 | 1.5/400 |
| 133FLW3 | 380 | 50 | 3 | 30 | 0.05 | 2700 | 4.5 | 185 | 58 | 0.8 | / |
| 175FLW2 | 220 | 50 | 1 | 60 | 0.3 | 2500 | 56 | 235 | 56 | 1.5 | 1.8/400 |
| 175FLW3 | 380 | 50 | 1 | 60 | 0.2 | 2500 | 5.6 | 235 | 56 | 1.5 | / |
| 180FLW2 | 220 | 50 | 1 | 60 | 0.3 | 2450 | 7.5 | 275 | 56 | 1.2 | 15/400 |
| 180FLW3 | 380 | 50 | 3 | 60 | 0.2 | 2450 | 7.5 | 275 | 56 | 1.2 | / |
| 190FLW2 190FLW3 220FLW2 | 220 | 50 | 1 | 80 | 0.4 | 2500 | 9.5 | 320 | 65 | 1.5 | 2.2/400 |
| 380 | 50 | 3 | 80 | 0.25 | 2500 | 95 | 320 | 65 | 1.5 | / | |
| 220 | 50 | 1 | 95 | 0.45 | 2500 | 15 | 420 | 72 | 2.0 | 2.2/400 | |
| 220FLW3 | 380 | 50 | 3 | 95 | 0.3 | 2500 | 15 | 420 | 72 | 2.0 | / |
| 250FLW2-A 250FLW3-A | 220 | 50 | 1 | 150 | 0.68 | 2500 | 20 | 560 | 73 | 2.6 | 2.7/400 |
| 380 | 50 | 3 | 150 | 0.5 | 2500 | 20 | 560 | 73 | 2.5 | / | |
| 250FLW4-A | 220 | 50 | 1 | 45 | 0.2 | 1400 | 11 | 135 | 60 | 2.0 | 1.5/400 |
| 280FLW2-A | 220 | 50 | 1 | 260 | 1.3 | 2500 | 31 | 750 | 79 | 3 | 7.0/400 |
| 280FLW3-A | 380 | 50 | 3 | 250 | 1 | 2500 | 31 | 750 | 79 | 3 | / |
| 280FLW4-A | 220 | 50 | 1 | 100 | 0.5 | 1400 | 16 | 450 | 79 | 3 | 4.0/400 |
