DESCRIPTION

Wuzheng provides fans of various types and specifications with high quality and efficiency. Our fans design with advanced technology, having more stable performance, which have been regarded as the preferred heat dissipation brand by many machine manufacturers. Nowadays, we have been praised a lot in the industry. In this chapter, we will introduce our Axial flow AC fan series.

If you would like to get more detailed quotation, please contact our sales department. Thank you!


Ordering information:

DK--brand name

80--frame size: 40×40mm, 50×50mm, 60×60mm,80×80mm 92×92mm, 120×120mm,150×150mm, 172×150mm

25--frame thickness: 25mm,60mm,85mm,10mm,38mm,89mm

H--speed: H=high,M=middle,L=Low

B--bearing system: S=sleeve, B=ball

L--terminals: T=Socket type,L=Leaded

1--Voltage(V)


Main parameters:

1. DK8025HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK8025HSL-1Sleeve110/12050/600.14/0.1315/112300/27000.45/0.5616.0/20.01.82/2.8022/23
DK8025HSL-2Sleeve220/24050/600.08/0.0715/112300/27000.45/0.5616.0/20.01.82/2.8022/23
DK8025HSL-3Sleeve38050/600.05/0.0415/112300/27000.45/0.5616.0/20.01.82/2.8022/23
DK8025HBL-1Ball110/12050/600.14/0.1315/112300/27000.45/0.5616.0/20.01.82/2.8022/23
DK8025HBL-2Ball220/24050/600.08/0.0715/112300/27000.45/0.5616.0/20.01.82/2.8022/23
DK8025HBL-3Ball38050/600.05/0.0415/112300/27000.45/0.5616.0/20.01.82/2.8022/23

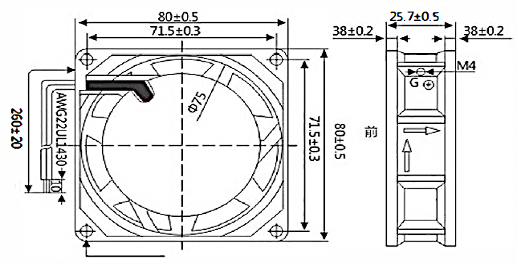

产品尺寸
Product Size
Unit(mm)

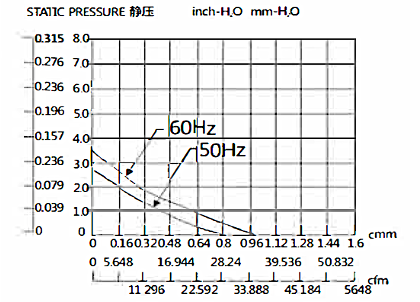

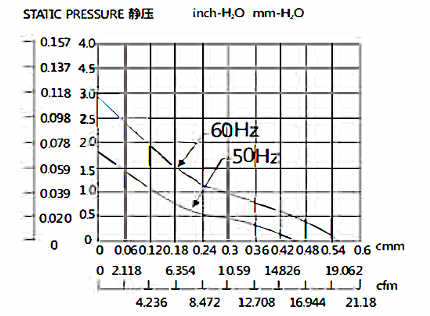

特性曲线

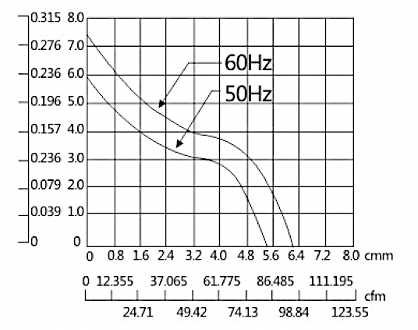

Performance Curves
  


2. DK9225HSL series

型号
Model		轴承结构
Bearing		电压
Rated voltage
(M)		频率
Freq
(Hz)		电流
Current
(A)		功率
Input power
(W)		转速
Speed (Rpm)		风量
Air Flow
(CMM)		风量
Air Flow
(CFM)		静压
static pressure
(Inch-h2O)		噪音
Noise Level
(dB-A)
DK9225HSL-1Sleeve110/12050/600.14/0.1316/112100/25000.45/0.5628.0/34.02.6/3.323/25
DK9225HSL-2Sleeve220/24050/600.08/0.0716/112100/25000.45/0.5628.0/34.02.6/3.323/25
DK9225HSL-3Sleeve38050/600.05/0.0416/112100/25000.45/0.5628.0/34.02.6/3.323/25
DK9225HBL-1Ball110/12050/600.14/0.1316/112100/25000.45/0.5628.0/34.02.6/3.323/25
DK9225HBL-2Ball220/24050/600.08/0.0716/112100/25000.45/0.5628.0/34.02.6/3.323/25
DK9225HBL-3Ball38050/600.05/0.0416/112100/25000.45/0.5628.0/34.02.6/3.323/25

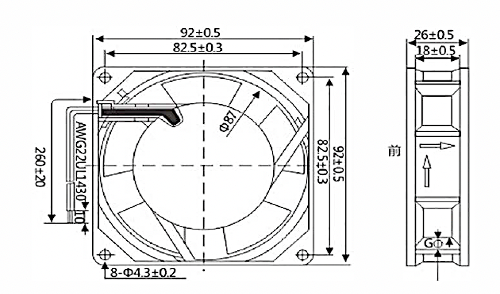

产品尺寸
Product Size
Unit(mm)

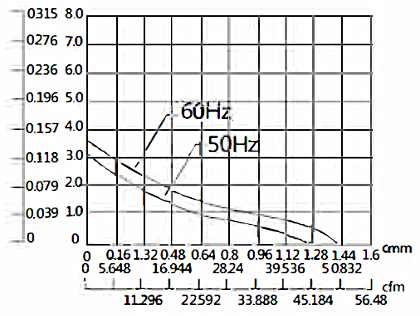

特性曲线
Performance Curves
  


3. DK11025HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK11025HSL-1Sleeve110/12050/600.16/0.1518/162100/24001.30/1.4446.0/51.03.2/3.631/34
DK11025HSL-2Sleeve220/24050/600.10/0.0918/162100/24001.30/1.4446.0/51.03.2/3.634/34
DK11025HSL-3Sleeve38050/600.09/0.0818/162100/24001.30/1.4446.0/51.03.2/3.631/34
DK11025HBL-1Ball110/12050/600.16/0.1518/162100/24001.30/1.4446.0/51.03.2/3.634/34
DK11025HBL-2Ball220/24050/600.10/0.0918/162100/24001.30/1.4446.0/51.03.2/3.631/34
DK11025HBL-3Ball38050/600.09/0.0818/162100/24001.30/1.4446.0/51.03.2/3.634/34

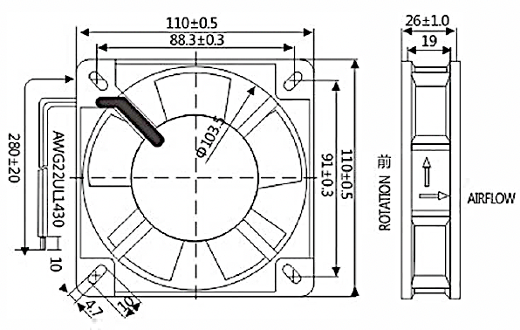

产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  


4. DK12025HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK12025HSL-1Sleeve110/12050/600.16/0.1518/172100/24001.11/1.6951.0/60.03.2/3.631/34
DK12025HSL-2Sleeve220/24050/600.10/0.0918/172100/24001.11/1.6951.0/60.03.2/3.634/34
DK12025HSL-3Sleeve38050/600.09/0.0818/172100/24001.11/1.6951.0/60.03.2/3.631/34
DK12025HBL-1Ball110/12050/600.16/0.1518/172100/24001.11/1.6951.0/60.03.2/3.634/34
DK12025HBL-2Ball220/24050/600.10/0.0918/172100/24001.11/1.6951.0/60.03.2/3.631/34
DK12025HBL-3Ball38050/600.09/0.0818/172100/24001.11/1.6951.0/60.03.2/3.634/34

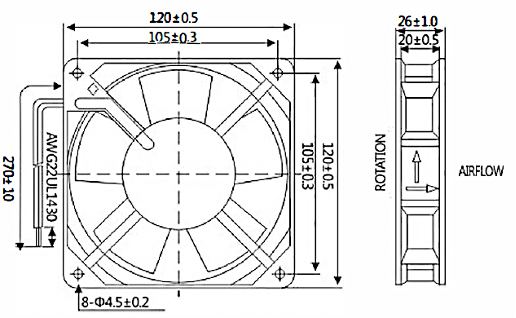

产品尺寸
Product Size
Unit(mm)

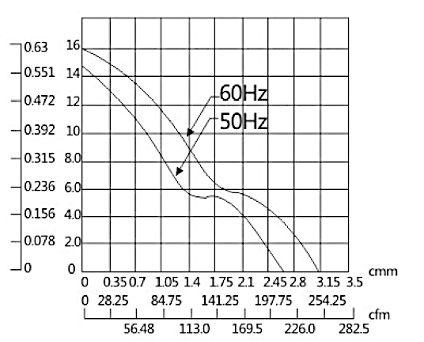

特性曲线
Performance Curves
  

5. DK-12038HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK-12038HSL-1Sleeve110/12050/600.25/0.2325/202500/27502.38/2.6984.0/95.02.6/3.340/45
DK-12038HSL-2Sleeve220/24050/600.14/0.1218/172500/27502.38/2.6984.0/95.02.6/3.340/45
DK-12038HSL-3Sleeve38050/600.14/0.1218/172500/27502.38/2.6984.0/95.02.6/3.340/45
DK-12038HBL-1Ball110/12050/600.25/0.2325/202500/27502.38/2.6984.0/95.02.6/3.340/45
DK-12038HBL-2Ball220/24050/600.14/0.1218/172500/27502.38/2.6984.0/95.02.6/3.340/45
DK-12038HBL-3Ball38050/600.14/0.1218/172500/27502.38/2.6984.0/95.02.6/3.340/45


产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  


6. DK-13538HSL series

型号
Model		轴承结构
Bearing		电压
Rated voltage
(M)		频率
Freq
(Hz)		电流
Current
(A)		功率
Input power
(W)		转速
Speed (Rpm)		风量
Air Flow
(CMM)		风量
Air Flow
(CFM)		静压
static pressure
(Inch-h2O)		噪音
Noise Level
(dB-A)
DK-13538HSL-1Sleeve110/1200.28/0.250.25/0.2326/232350/26502.60/3.1192.0/110.07.4/8.044.3/50
DK-13538HSL-2Sleeve220/2400.16/0.140.14/0.1226/232350/26502.60/3.1192.0/110.07.4/8.044.3/50
DK-13538HSL-3Sleeve3800.12/0.100.14/0.1226/232350/26502.60/3.1192.0/110.07.4/8.044.3/50
DK-13538HBL-1Ball110/1200.28/0.250.25/0.2326/232350/26502.60/3.1192.0/110.07.4/8.044.3/50
DK-13538HBL-2Ball220/2400.16/0.140.14/0.1226/232350/26502.60/3.1192.0/110.07.4/8.044.3/50
DK-13538HBL-3Ball3800.12/0.100.14/0.1226/232350/26502.60/3.1192.0/110.07.4/8.044.3/50

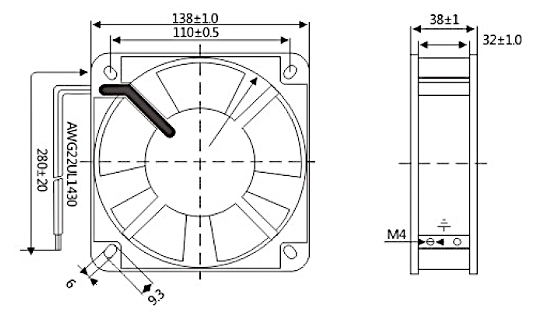

产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  


7. DK15050HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK15050HSL-1Sleeve110/12050/600.45/0.4045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK15050HSL-2Sleeve220/24050/600.32/0.3045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK15050HSL-3Sleeve38050/600.24/0.2245/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK15050HBL-1Ball110/12050/600.45/0.4045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK15050HBL-2Ball220/24050/600.32/0.3045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK15050HBL-3Ball38050/600.24/0.2245/4025004.95/5.46175.0/193.012.2/13.249.6/53

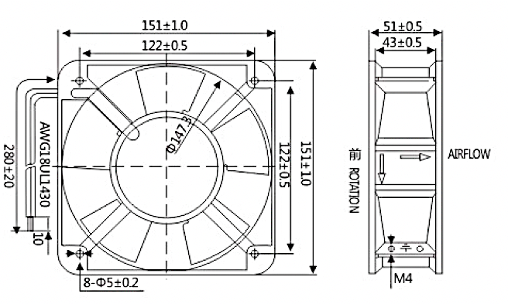

产品尺寸
Product Size
Unit(mm)

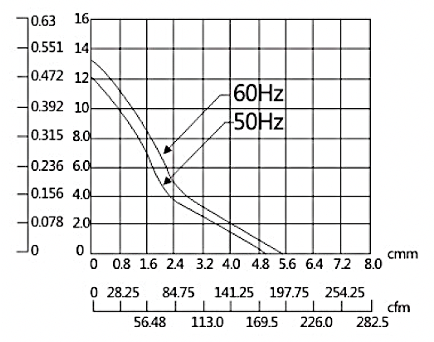

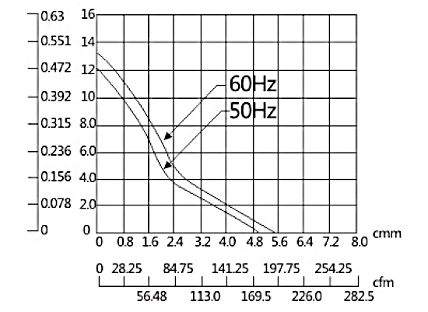

特性曲线
Performance Curves
  


8. DK17250HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK17250HSL-1Sleeve110/12050/600.45/0.4045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK17250HSL-2Sleeve220/24050/600.32/0.3045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK17250HSL-3Sleeve38050/600.24/0.2245/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK17250HBL-1Ball110/12050/600.45/0.4045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK17250HBL-2Ball220/24050/600.32/0.3045/4025004.95/5.46175.0/193.012.2/13.249.6/53
DK17250HBL-3Ball38050/600.24/0.2245/4025004.95/5.46175.0/193.012.2/13.249.6/53

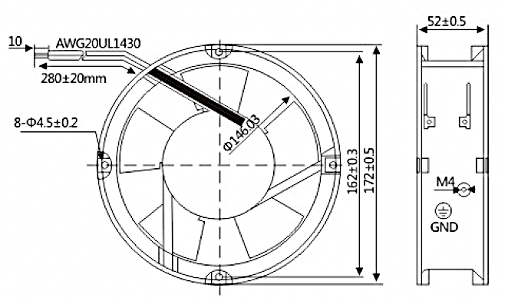

产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  


9. DK172HSL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK172HSL-1Sleeve110/12050/600.45/0.445/4025004.96/5.46175.0/193.012.2/13.249.6/53
DK172HSL-2Sleeve220/24050/600.32/0.3045/4025004.96/5.46175.0/193.012.2/13.249.6/53
DK172HSL-3Sleeve38050/600.24/0.2245/4025004.96/5.46175.0/193.012.2/13.249.6/53
DK172HBL-1Ball110/12050/600.45/0.4045/4025004.96/5.46175.0/193.012.2/13.249.6/53
DK172HBL-2Ball220/24050/600.32/0.3045/4025004.96/5.46175.0/193.012.2/13.249.6/53
DK172HBL-3Ball38050/600.24/0.2245/4025004.96/5.46175.0/193.012.2/13.249.6/53


产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  


10. DK18060HBL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK18060HBL-1Ball110/120500.605025007.2225415.358
DK18060HBL-2Ball220/240500.355025007.2225415.358
DK18060HBL-2Ball380500.255025007.2225415.358

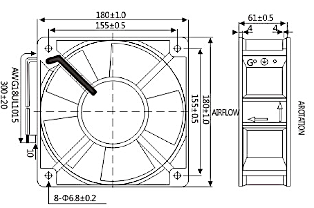

产品尺寸
Product Size
Unit(mm)

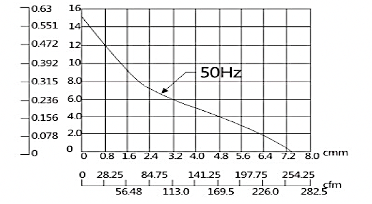

特性曲线
Performance Curves
  

11. DK22060HBL series

型号
Model
轴承结构
Bearing
电压
Rated voltage
(M)
频率
Freq
(Hz)
电流
Current
(A)
功率
Input power
(W)
转速
Speed (Rpm)
风量
Air Flow
(CMM)
风量
Air Flow
(CFM)
静压
static pressure
(Inch-h2O)
噪音
Noise Level
(dB-A)
DK22060HBL-1Ball110/120500.87023507.92781659
DK22060HBL-2Ball220/240500.457023507.92781659
DK22060HBL-3Ball380500.287023507.92781659

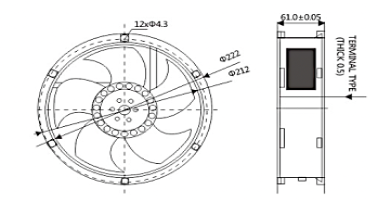

产品尺寸
Product Size
Unit(mm)
特性曲线
Performance Curves
  
