DESCRIPTION

Principle:

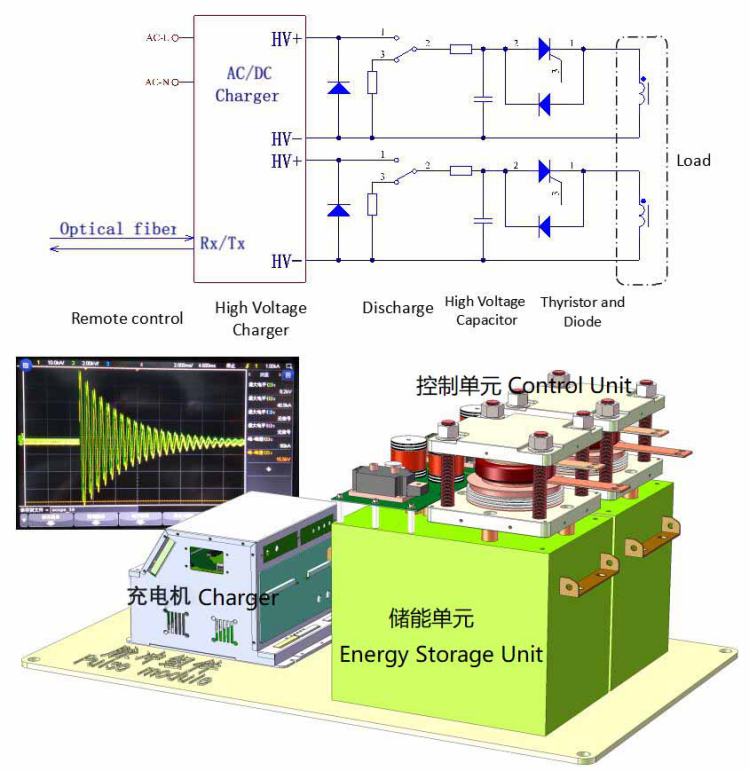

The high-voltage pulse capacitor outputs the instantaneous high power pulse current to the inductive load through the thyristor switching device, and generates a fast and strong magnetic field in the load coil to realize the conversion of electric energy, magnetic energy and mechanical energy for external work.

Purpose:
Fast circuit breaker switch for high voltage power
Metal forming
Electromagnetic pulse blasting tool
Electromagnetic ejection system
High-speed electromagnetic orbital motion system
Accurate high energy electromagnetic damping system

Parameters:
Capacitance voltage: 1KV-50KV
Output current: 1KA-160KA
Resonant frequency: ≤ 2.5KHz
Current rise rate: ＞ 600KA
Product technology: small size, high energy ratio, flexible structure design
