Wuzheng IGBT modules attribute high efficiency and fast switching by combining the MOSFET gate-control structure with the high current and low saturation voltage characteristics of BJTs, ranging from 650V to 1700V or from 15A to 1600A.This chapter will show not only the features and application fields, but also the details of IGBT modules in 1700V.
Features Highly matched with application Low saturation voltage Soft turn-off performance Strong anti-short circuit ability | Applications Inverter welding machine Inverter power supply Frequency converter Switched reluctance motor Electric vehicles Induction heating PV inverter |
Product range:
| Type | VCES | IC | VCE(sat) | E(on) | Rth(J-C) | Packages | Circuit |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | ||||
| (V) | (A) | (V) | (mJ) | (K/W) | |||

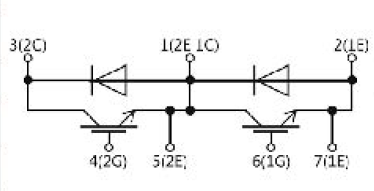

| DKG75HF170TE | 1700 | 75 | 2.24 | 27.6 | 0.48 | G1 |  |
| DKG100HF170TE | 1700 | 100 | 1.65 | 33.4 | 0.28 | G1 | |
| DKG150HF170TE | 1700 | 150 | 1.67 | 58.9 | 0.17 | G1 | |
| DKG200HF170TE | 1700 | 200 | 1.65 | 52.5 | 0.14 | G2 | |
| DKG300HF170TE | 1700 | 300 | 1.7 | 73.2 | 0.1 | G2 | |

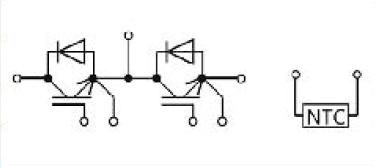

| DKG 150HF170S | 1700 | 150 | 2.3 | 110 | 0.085 | G8 |  |
| DKG 225HF170S | 1700 | 225 | 2.3 | 161 | 0.075 | G8 | |
| DKG300HF170TE | 1700 | 300 | 2.2 | 94.8 | 0.068 | G8 | |
| DKG450HF170TE | 1700 | 450 | 1.7 | 181 | 0.07 | G8 | |
| DKG600HF170TE | 1700 | 600 | 1.6 | 135.1 | 0.05 | G8 |
